SWKD-20.0HFV High Frequency Wood Dryer

SWKD-20.0HFV is the customized model of high frequency vacuum wood dryer kilns. The capacity is 21.6 cubic meters per full load and the largest wood sizes which could be loaded on the timber cart is 8000 X 1800 X 1500 MM

Specification of SWKD-20.0HFV HF Vacuum Wood Dryer Kiln

SWKD-20.0HFV model is a specially designed high frequency vacuum wood drying kiln to meet customers’ requirements about large capacity. Especially for some table top factories which have supper wide slabs, SW-20.0III HF vacuum wood dryer kiln is a good choice.

Model SWKD-20.0HFV High Frequency Vacuum Wood Dryer
Capacity 21.6 cubic meters per full load
Out Dimension 9600x2700x2300mm
Timber Cart Size 8000x1800x1500mm
Max Length of Wood 8000mm
High Frequency 6.78MHz
Vacuum pressure -0.093Mpa
Weight(kg) 17000

High Frequency Vacuum Drying Kiln Technology

The high frequency vacuum wood drying kiln adopts high frequency medium heating and vacuum dehydration technology.
High frequency is also called radio frequency, this technology is a kind of direct heating. The principle is using the wood as a medium, the wood acts as a capacitor. . When giving the two pieces of metal plate voltage, an electric field is created between them. Then water molecular in the wood and between electrodes will be polarized by the alternating magnetic field and move in very high speed rapidly. The impact and friction (billions of times per second) among water molecules creates heating in very short time.
Different from the conventional steam kilns or common vacuum kilns which are use hot air or heated plates to dry the wood from surface to core. High frequency power does not heat wood but makes moisture inside the wood heating themselves. It is a kind of directly heating, This continuous effect allows the wood heated from surface to core wholly and uniformly.

That is one of the reasons why the high frequency vacuum machine is 10 times faster than conventional wood drying kilns. The hardwood from 30% -40% moisture content to 8-10%MC only take 4 days and for the fresh cut wood it only takes 10-12 days to get 8-10% moisture content.

Our kiln also adopts vacuum dehydration technology. The stainless steel vacuum pump can drain out the air and the atmospheric pressure in the vacuum chamber can reach -0.093Mpa, which allows water to vaporize at a low temperature below 40℃, At the same time, vacuum can also suck the vapor out.

The machine water circulation system will condensate the vapors in the chamber, then drain them out.

Meanwhile Wood is drying under a vacuum wet and low temperature condition. It is nice to the wood and will ensure that the wood is no cracks and with nature color.

Main Features of SWKD-20.0HFV high frequency vacuum wood dryer

When labor costs and land costs rise, people begin to use machinery for more accurate and efficient production, which also affects the wood drying industry. Some forward-looking companies like Shuowei have begun to use the latest technologies like high-frequency Drying and vacuum drying

Shuowei’ HFV wood drying covers all the advantages of kiln drying, and at the same time, with the help of computer-aiding-design, it is a step closer to the auto control system. Its requirements for workers are far lower than the traditional kiln drying. The combination of different drying technologies greatly improves the efficiency of energy utilization and ensure the high quality of wood drying.

The drying circle will greatly shortened if you use SW series wood drying kilns, the drying time for the pine board will be only 4-6 days, While Drying fast means increasing output, inventory turnover and better cash-flow

With the help of vacuum chamber, the wood could be dried at a low temperature, which will do good to the quality, as it is known there will be about 13%-15% waste for normal drying, by this drying kiln it could be controlled to be 1%, thus to sell better price for the same batch.

Drying result

Moisture content test for some typical wood species after finish the drying process by Shuowei HF vacuum dryer kiln.

Our Customers

Many customers from the world are benefitting from the high frequency drying technology, if you want make your drying process easier and faster, welcome contact us

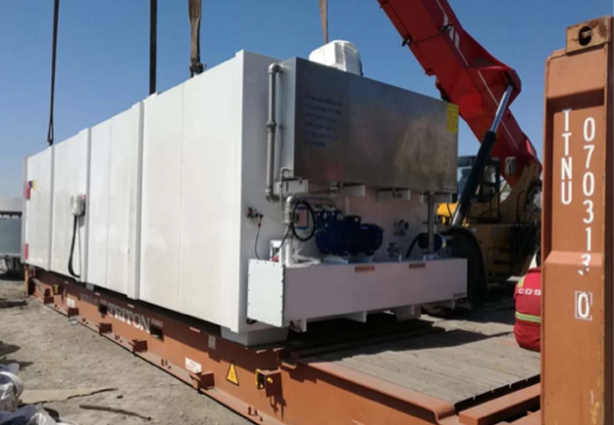

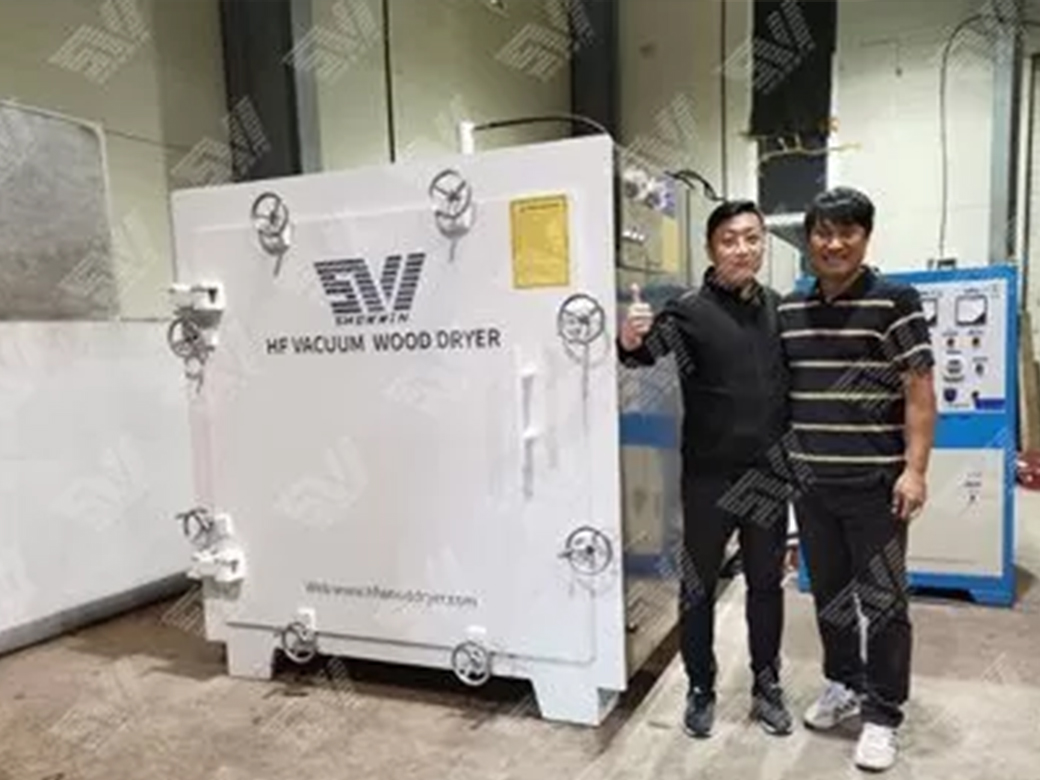

Vacuum kiln in the Unite States

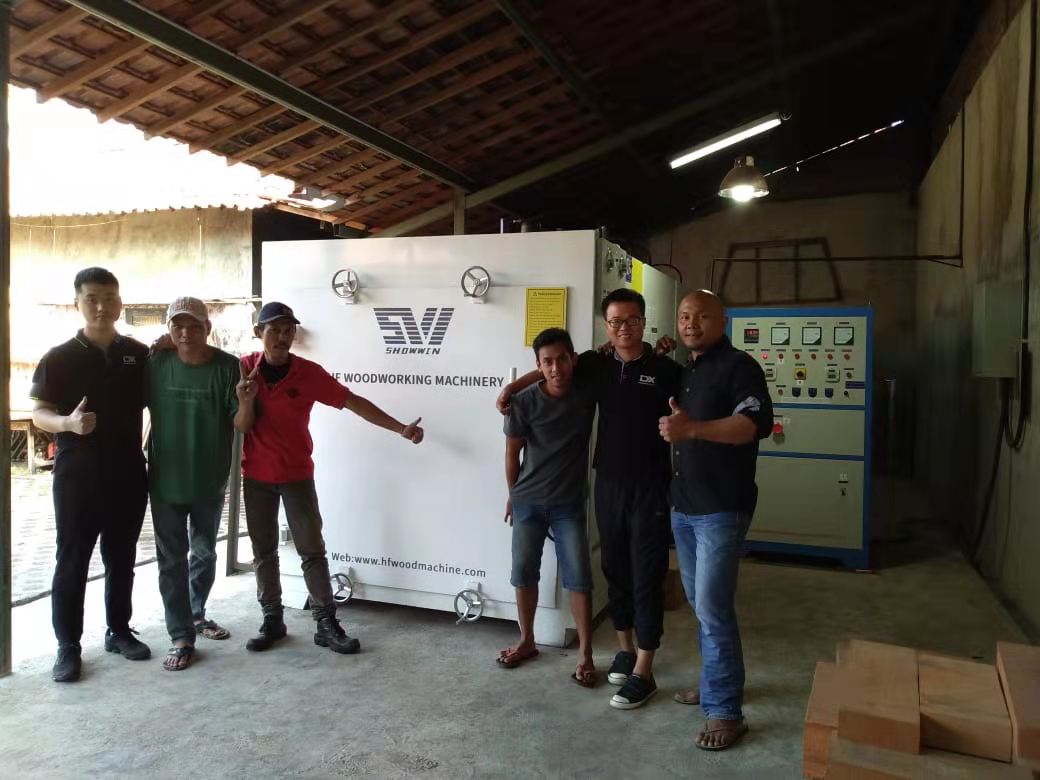

Vacuum kiln in the Vietnam

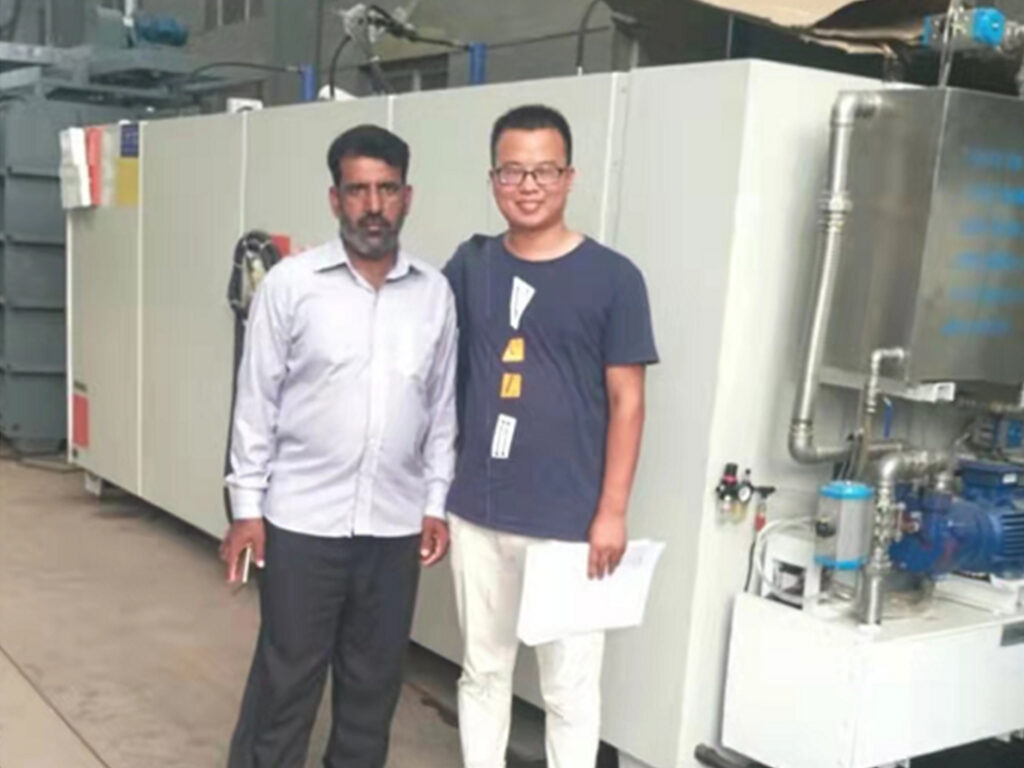

Vacuum kiln in the Unite States

Why choose us Shuowei?

We do our best to provide you with better service and support for the end users of this HFV machine drying kilns.

Rich experience: Focused on the wood drying industry for more than 30 years, Shuiowei has mastered the drying methods of various wood species, and has most collected comprehensive drying data.

Strong R&D Capacity: There is a professional engineering team in Shuowei, it is led by two drying experts with more than 30 years experience and 12 young engineers who have been in this field for 6-10 years, it could provide customers with professional technical support and wood drying project solutions.

Customized services: According to the customers’ requirements,we can customize the exclusive equipment which is suitable for the work conditions and needs

After sales service: Super long warranty, free replacement of accessories within the warranty period, free after-sales service for life, 24-hour after-sales service all day, and solve after-sales problems anytime and anywhere

Strict Quality control – For electronic components we adopt the best ones (Schneider brand) , and Stainless steel is used for anti-corrosion vacuum oven. The equipment has been tested throughout the production and before leaving the factory to ensure the operation quality in aspects of power, pressure, air tightness etc., It has passed the all-round quality inspection of SGS, BV and other international testing institutions.

High praise from customers: The customers are all over the world including United States, Canada, South Korea, Japan, Indonesia, Thailand, Vietnam, Malaysia, Australia, New Zealand, European countries and Africa. The industry involves furniture factory, floor factory, cabinet factory, wooden door factory, wooden handicraft factory, etc., Shuowei has been highly praised by customers
