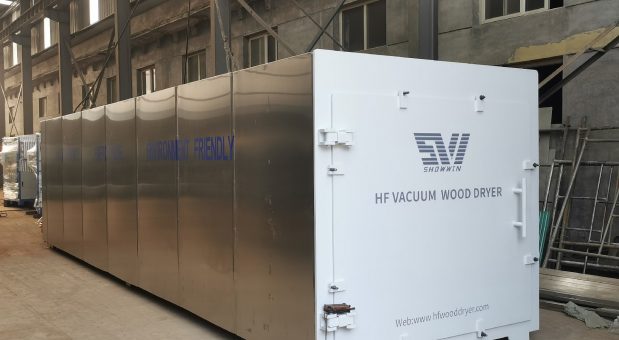

SWKD-8.0HFV vacuum Lumber Kiln Dryer

SWKD-8.0HFV is a medium capacity high frequency vacuum wood drying kiln which is suitable for large section wood slabs and broad-leaved trees.

SWKD-8.0HFV Lumber Kiln Dryer

High Frequency Vacuum Lumber Drying Kiln, also known as HF wood dryer.
Compared with steam drying kiln, our high frequency vacuum kiln is more suitable for large section wood and broad-leaved hard wood
high-frequency heating is direct heating by increasing the temperature to evaporate water, which means that the water molecule in wood rotates at a high speed and generates heat rapidly.
The wood is heated inside and outside uniformly, and then vaporize quickly,the vapor will be sucked out by vacuum negative pressure.
In a vacuum environment, wood will be dried at a low temperature thus keeps wood the nature color.

Specification Of SWKD-8.0HFV Vacuum Wood Dryer

High Frequency Vacuum Dryer for Wood is different with conventional dehumidification kiln. It is running by electricity. As the medium capacity model, the maximum wood size it can be loaded is 6 meters long. It is warmly welcomed by the majority of solid wood floor manufacturers, sawmills, wood drying service plants and furniture manufacturers etc.

Model SWKD-8.0HFV
Capacity 8.64 cubic meters per full load
Out Dimension 7600*2000*2090mm
Timber Cart Size 6000*1200*1200
Max Length of Wood 6m
High Frequency 6.78MHz
Vacuum pressure -0.093Mpa
Weight(kg) 9000

advantages of SWKD-8.0HFV high frequency vacuum wood dryer

To clearly show the benefits of High Frequency Vacuum Wood Dryer, you need well understand the differences between Radio Frequency vacuum drying and conventional kiln drying.
The key advantages of high frequency drying are:

1) HF vaccum dryer offer a significant reduction in drying times. In many cases as little as 1/10th of the time that is required when drying in conventional kilns.

2) HF vacuum dryer have the ability to dry heavy stock (8/4, 10/4, 12/4) and large timber efficiently and without major defects.

3) Heat treatment temperatures in HF kilns can be reached in much less time than conventional heat treatment methods as a result of efficient“direct heating.”

4) HF drying does not rely on air movement between the lumber to remove moisture. So HF vacuum dryer do not require sticks (spacers) between the lumber which eliminates stacking labour and sticker stain.

5) HF vacuum dryer can be used as a method to re-dry material rejected from conventional kilns or to quickly reduce moisture content in lumber already treated by DH kilns

6) HF vacuum dryer run solely on electricity thereby eliminating the need for large commercial boilers. This creates a greener footprint on the environment.

7) HF vacuum dryer can be installed quickly and moved easily thus better for the owners when moving and expansions are required

Drying result

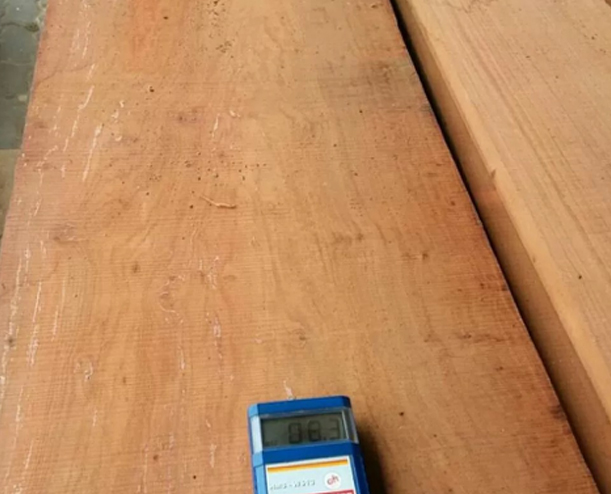

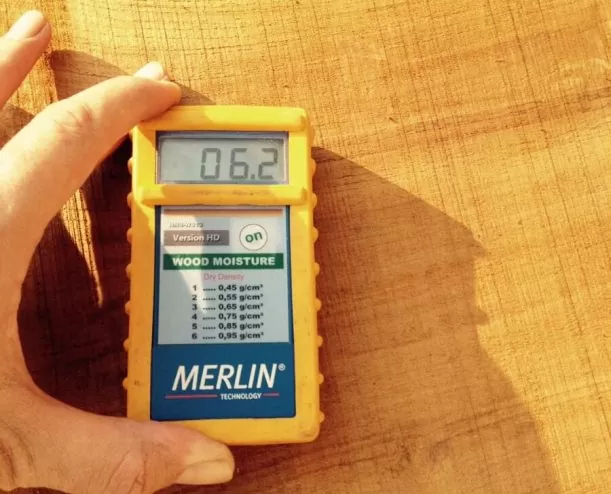

 Shuowei HF Vacuum wood drying kiln has received many good feedback from our customer, below there are MC tests results of some typical wood species.

Our Customers

If you want make your drying process easier and faster, welcome contact us,join Shuowei group to enjoy the benefits like our customers all over the world.

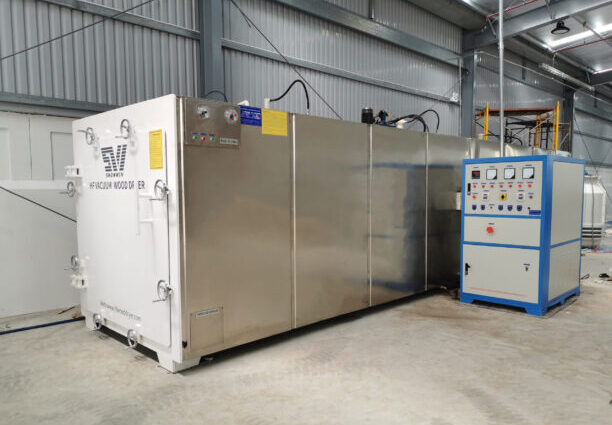

HF vacuum kiln in the United States

HF vacuum kiln in Indonesia

HF vacuum kiln in Canada

Why choose us Shuowei?

We do our best to provide you with better service and support for the end users of this HFV machine drying kilns.

Rich experience: Focused on the wood drying industry for more than 30 years, Shuiowei has mastered the drying methods of various wood species, and has most collected comprehensive drying data.

Strong R&D Capacity: There is a professional engineering team in Shuowei, it is led by two drying experts with more than 30 years experience and 12 young engineers who have been in this field for 6-10 years, it could provide customers with professional technical support and wood drying project solutions.

Customized services: According to the customers’ requirements,we can customize the exclusive equipment which is suitable for the work conditions and needs

After sales service: Super long warranty, free replacement of accessories within the warranty period, free after-sales service for life, 24-hour after-sales service all day, and solve after-sales problems anytime and anywhere

Strict Quality control – For electronic components we adopt the best ones (Schneider brand) , and Stainless steel is used for anti-corrosion vacuum oven. The equipment has been tested throughout the production and before leaving the factory to ensure the operation quality in aspects of power, pressure, air tightness etc., It has passed the all-round quality inspection of SGS, BV and other international testing institutions.

High praise from customers: The customers are all over the world including United States, Canada, South Korea, Japan, Indonesia, Thailand, Vietnam, Malaysia, Australia, New Zealand, European countries and Africa. The industry involves furniture factory, floor factory, cabinet factory, wooden door factory, wooden handicraft factory, etc., Shuowei has been highly praised by customers
