SWKD-10.0HFV Wood Drying Machine

High frequency vacuum wood dryer kiln adopts high frequency medium heating and vacuum dehydration. The hardwood from 30% moisture content to 8-10%MC only take 4-6 days

SWKD-10.0HFV Wood Drying Machine

High frequency is a kind of direct heating. It creates electromagnetic fields between two electrodes through three phase alternating current. In this field, water molecules are polarized–rotated–heated by friction
High frequency wave can penetrate wood deeply and dry wood from core to wood surface wholly and uniformly.
Even thick wood can also be well heated. High frequency vacuum wood dryer is also equipped with vacuum system.
Under vacuum conditions, wood moisture can be boiled at 35-60 degree and vaporize rapidly, which can save both time and energy.
Low temperature wood drying can guarantee wood quality to avoid crack problem. Meanwhile, vacuum system will suck wood moisture out due to pressure difference; double increased wood drying speed.

Specification of SWKD-10.0HFV Vacuum Wood Dryer Kiln

SWKD-10.0HFV High Frequency Vacuum Wood Dryer is one of the large capacity vacuum wood dryer. The max wood size it can handle is 7 meters long, 1.2 meters wide and 1.2 meters high. It is very popular in North America market, especially for the solid wood slab sawmills, solid wood slab table top and solid wood furniture manufacturers.

Model SWKD-10.0HFV Wood Dryer Kiln
Capacity 10.08 cubic meters per full load
Out Dimension 8600x2000x2090mm
Timber Cart Size 7000x1200x1200mm
Max Length of Wood 7000mm
High Frequency 6.78MHz
Vacuum pressure -0.093Mpa
Weight(kg) 11000

Main Features of SWKD-10.0HFV high frequency vacuum wood dryer

1.The wood is drying under vacuum condition , it is Low boiling point of water,it can be boiled at 30℃. Low temperature drying ensures better drying quality.

2.High Frequency medium heating make the wood heated very fast, temperature gradient of internal high and external low together with vacuum pressure make water drain out very quickly.

3.High frequency vacuum wood dryer machine equipped with hydraulic pressure system on the top, the hydraulic pressure system supply more than 6 tons pressure on the wood stacking to prevent wood deforming and bending. Besides we use stainless steel 304 to make the pressure plate.

4.PLC control system and Pneumatic system make it is easy to operate. Automatic drying make it no need for workers being on duty during the drying process.

5.Our high frequency vacuum wood dryer machine is made of stainless steel to avoid corrosion and rust.

6.Vacuum system will suck wood moisture out due to pressure difference, double increased wood drying speed.

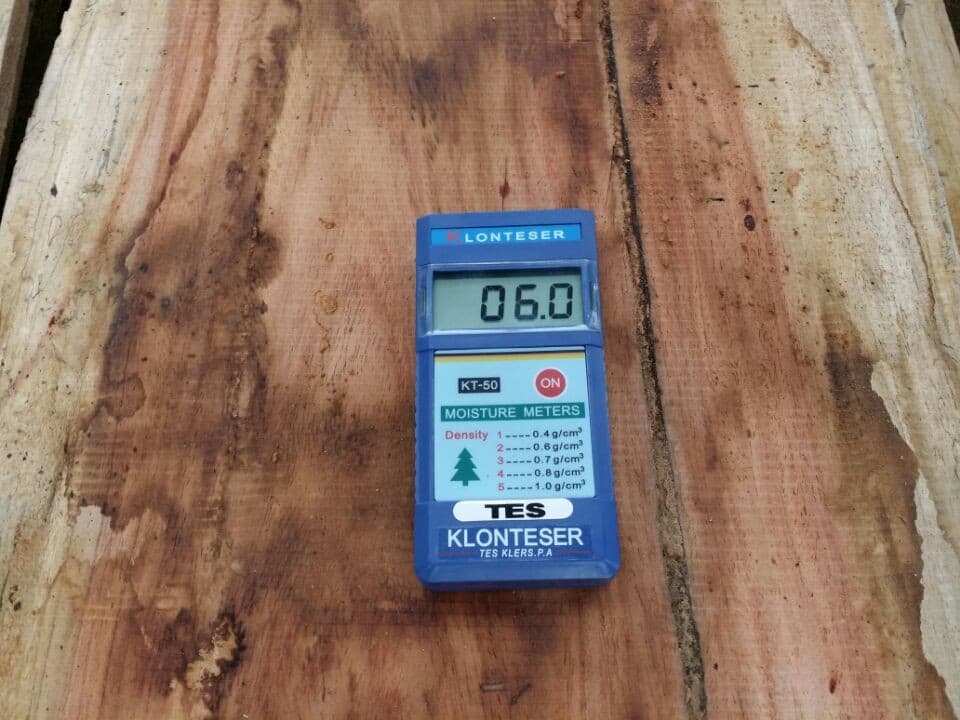

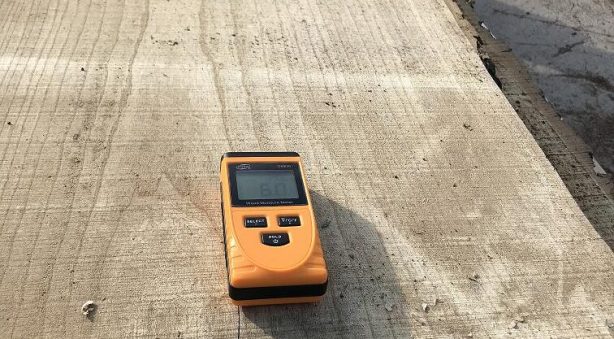

7.Moisture content test after finish the drying process by our high frequency vacuum wood dryer.

Drying result

You could always find an easier faster and better quality wood drying solution in Shuowei, we are expert at wood drying, and the results are proved by global customers

Our Customers

Many customers from the world are benefitting from the high frequency drying technology, if you want make your drying process easier and faster, welcome contact us

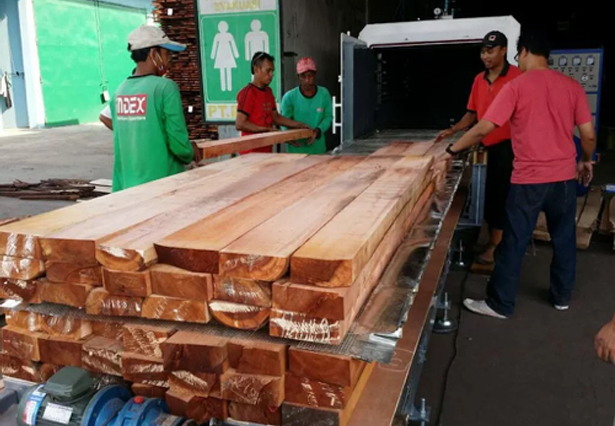

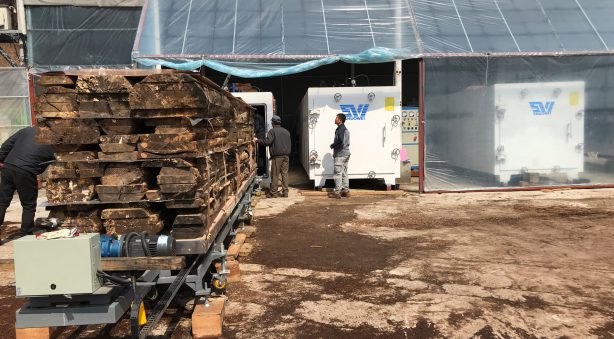

Vacuum kiln in Africa

Vacuum kiln in Europe

Vacuum kiln in Vietnam

Why choose us Shuowei?

We do our best to provide you with better service and support for the end users of this HFV machine drying kilns.

Rich experience: Focused on the wood drying industry for more than 30 years, Shuiowei has mastered the drying methods of various wood species, and has most collected comprehensive drying data.

Strong R&D Capacity: There is a professional engineering team in Shuowei, it is led by two drying experts with more than 30 years experience and 12 young engineers who have been in this field for 6-10 years, it could provide customers with professional technical support and wood drying project solutions.

Customized services: According to the customers’ requirements,we can customize the exclusive equipment which is suitable for the work conditions and needs

After sales service: Super long warranty, free replacement of accessories within the warranty period, free after-sales service for life, 24-hour after-sales service all day, and solve after-sales problems anytime and anywhere

Strict Quality control – For electronic components we adopt the best ones (Schneider brand) , and Stainless steel is used for anti-corrosion vacuum oven. The equipment has been tested throughout the production and before leaving the factory to ensure the operation quality in aspects of power, pressure, air tightness etc., It has passed the all-round quality inspection of SGS, BV and other international testing institutions.

High praise from customers: The customers are all over the world including United States, Canada, South Korea, Japan, Indonesia, Thailand, Vietnam, Malaysia, Australia, New Zealand, European countries and Africa. The industry involves furniture factory, floor factory, cabinet factory, wooden door factory, wooden handicraft factory, etc., Shuowei has been highly praised by customers
