Customized wood Kiln for Wood Block

For the thick wood block it is take super long time to finish the drying process by conventional kiln. In order to solve this problem, we developed the high frequency vacuum kiln for wood block.
It creates electromagnetic fields between two electrodes through three phase electricity current, and such direct heating could well dry the thick wood in a short time.

Customized HF vacuum wood Kiln for Wood Block

For wood block whose thickness bigger than 100 mm (3 inches) , let alone the long drying time, it is hard to dry in the traditional kilns, and the waste factor will be much bigger. But benefit from the high frequency or radio frequency technology, Shuowei high frequency vacuum wood dryer kiln can dry it fast and with high quality, . if you have difficulty drying such thick wood, welcome contact us. we will offer you a good solution based on our experience.

main feature of SW series high frequency vacuum wood dryer

      1.Stable drying without defects

The wood is drying under vacuum conditions, it offers low boiling point of water at 35℃. Low temperature drying solves the problems of wood cracking, deformation and discoloration, especially for precious timber sensitive to temperature.

  1. Fast drying

High Frequency medium heating make the wood heated very fast, Temperature Gradient of internal high and external low make water discharged out very quickly. The 8cm thick Africa rosewood from 40-50% moisture content only take 7 days to reach 8-10% moisture content.

  1. High quality drying result

High frequency vacuum wood dryer machine equipped with hydraulic pressure system on the top, the hydraulic pressure system supply more than 6 tons pressure on the wood stacking to prevent wood deformation and bending. And we use stainless steel 304 to make the pressure plate.

  1. Easy operation

PLC control system and Pneumatic system make it is easy to operate. Automatic drying make it no need on duty during the drying process.

  1. High quality high frequency vacuum wood dryer machine

Our high frequency vacuum wood dryer machine is made of stainless steel to avoid corrosion and rust.

High Frequency Vacuum Drying Kiln Technology

High frequency is also called radio frequency, this technology is a kind of direct heating. The principle is using the wood as a medium, the wood acts as a capacitor. . When giving the two pieces of metal plate voltage, an electric field is created between them. Then water molecular in the wood and between electrodes will be polarized by the alternating magnetic field and move in very high speed rapidly. The impact and friction (billions of times per second) among water molecules creates heating in very short time.
Different from the conventional steam kilns or common vacuum kilns which are use hot air or heated plates to dry the wood from surface to core. High frequency power does not heat wood but makes moisture inside the wood heating themselves. It is a kind of directly heating, This continuous effect allows the wood heated from surface to core wholly and uniformly.

That is one of the reasons why the high frequency vacuum machine is 10 times faster than conventional wood drying kilns. The hardwood from 30% -40% moisture content to 8-10%MC only take 4 days and for the fresh cut wood it only takes 10-12 days to get 8-10% moisture content.

Our kiln also adopts vacuum dehydration technology. The stainless steel vacuum pump can drain out the air and the atmospheric pressure in the vacuum chamber can reach -0.093Mpa, which allows water to vaporize at a low temperature below 40℃, At the same time, vacuum can also suck the vapor out.

The machine water circulation system will condensate the vapors in the chamber, then drain them out.

Meanwhile Wood is drying under a vacuum wet and low temperature condition. It is nice to the wood and will ensure that the wood is no cracks and with nature color.

Our Wood Drying Projects

SW Series HFV wood drying kilns are expert at handling the super thick wood block, we have many clients all over the world using it to dry this, let’s see some cases.

Our Customers

Many customers from the world are benefitting from the high frequency drying technology, if you want make your drying process easier and faster, welcome contact us

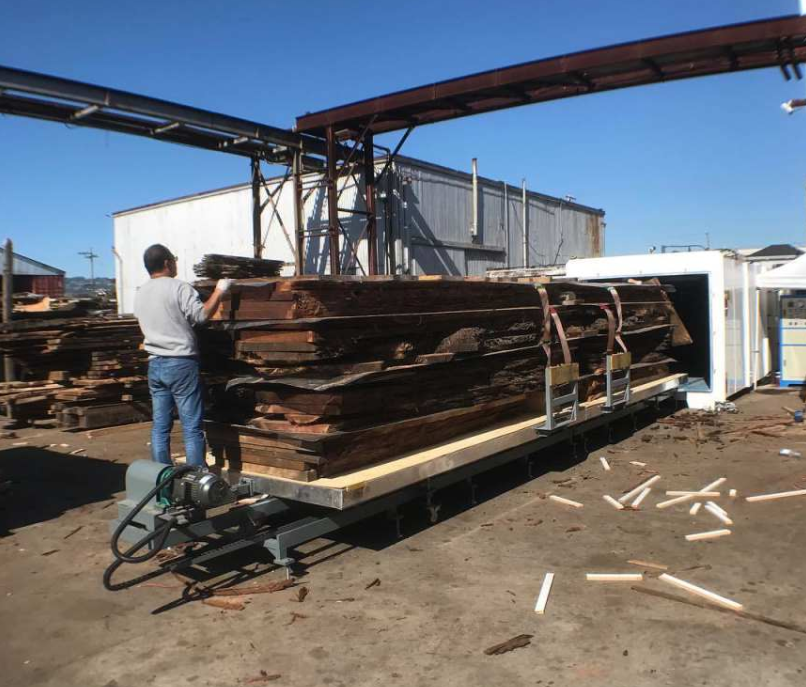

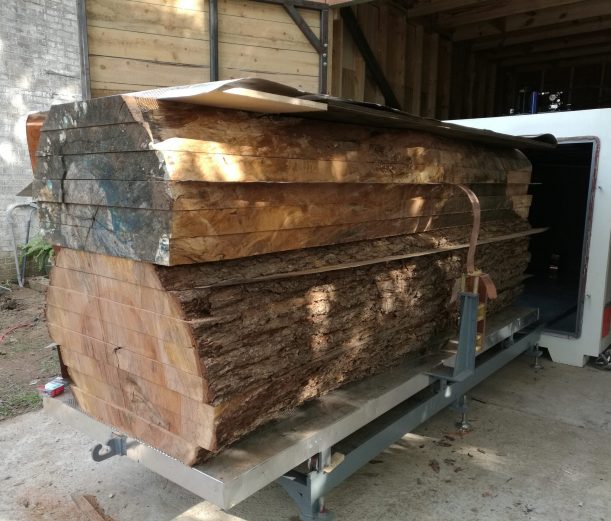

Vacuum kiln in the Unite States

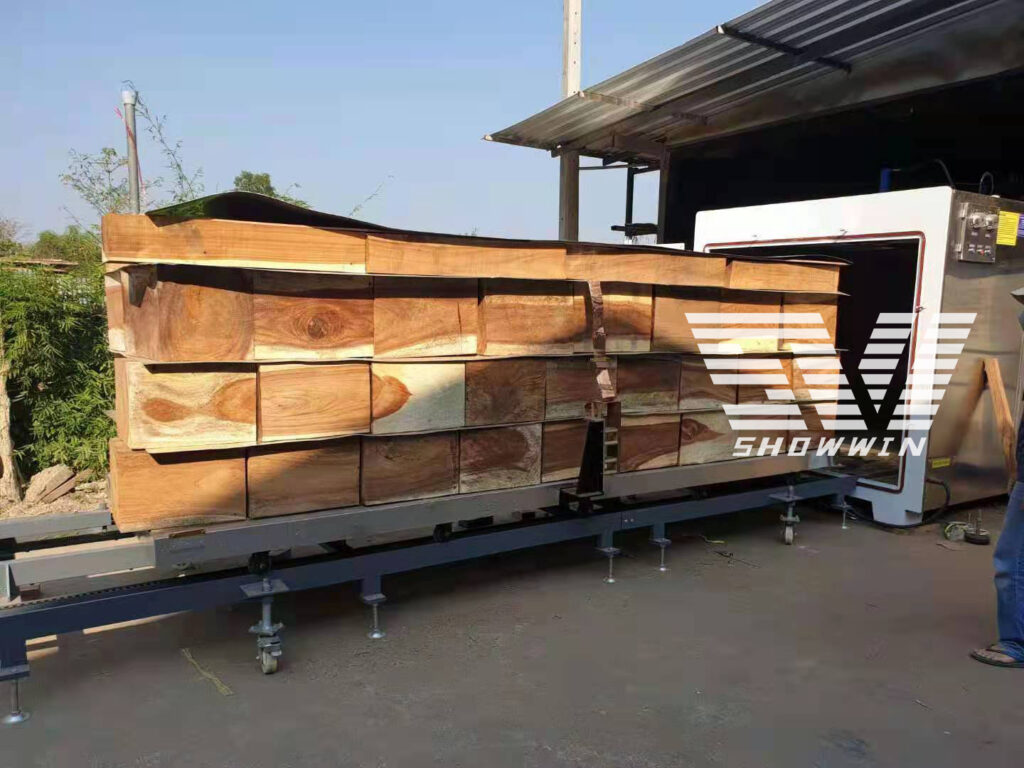

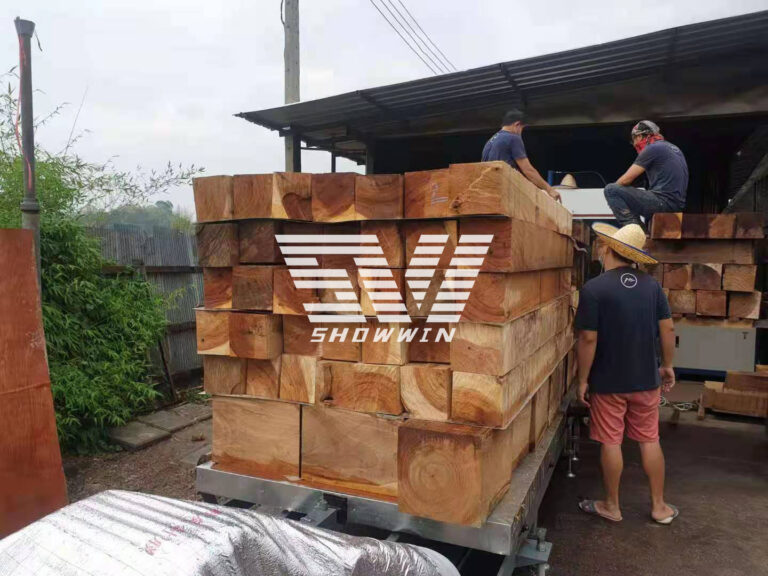

Vacuum kiln in the Vietnam

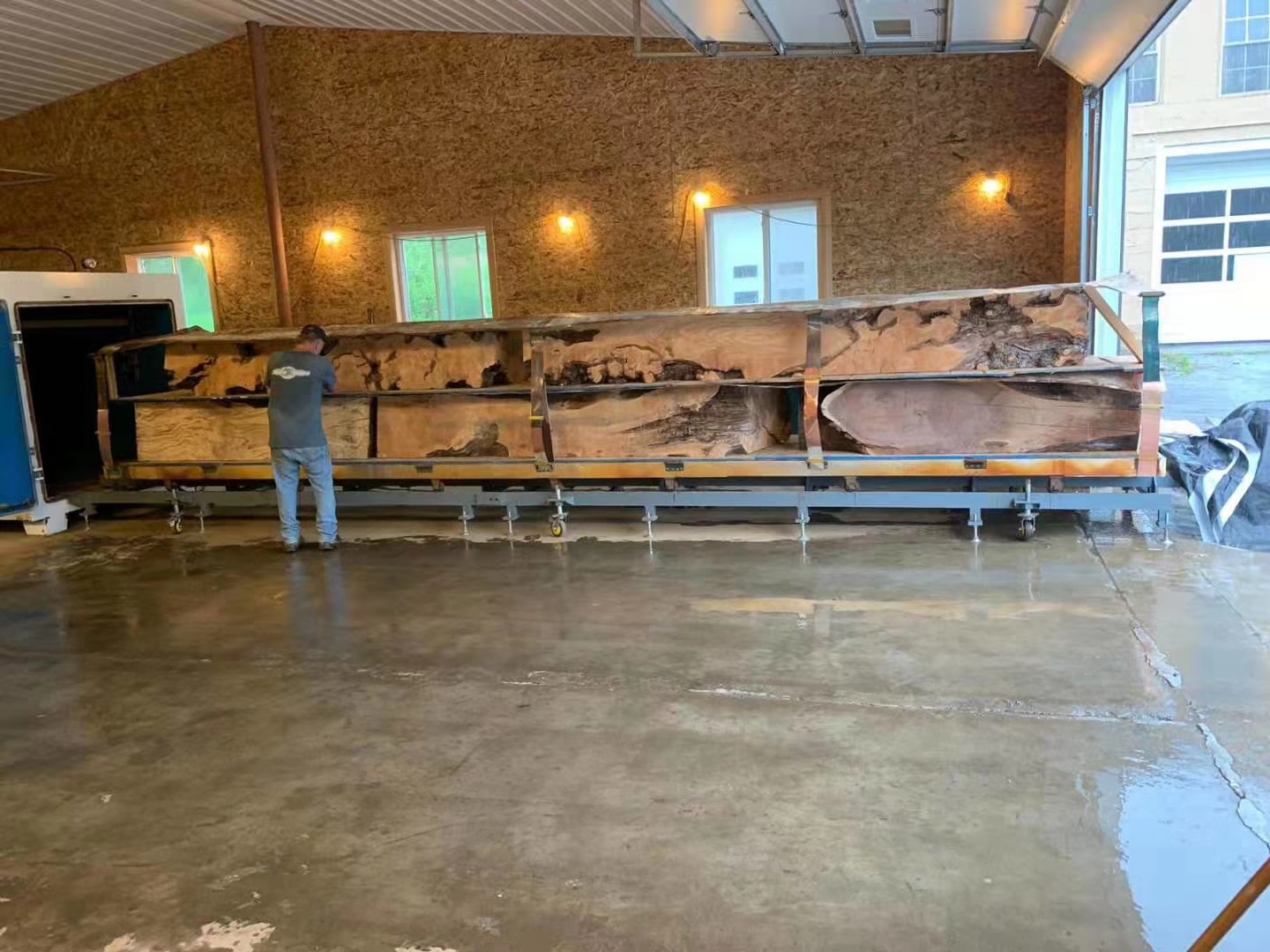

Vacuum kiln in the Unite States

Why choose us Shuowei?

We do our best to provide you with better service and support for the end users of this HFV machine drying kilns.

Rich experience: Focused on the wood drying industry for more than 30 years, Shuiowei has mastered the drying methods of various wood species, and has most collected comprehensive drying data.

Strong R&D Capacity: There is a professional engineering team in Shuowei, it is led by two drying experts with more than 30 years experience and 12 young engineers who have been in this field for 6-10 years, it could provide customers with professional technical support and wood drying project solutions.

Customized services: According to the customers’ requirements,we can customize the exclusive equipment which is suitable for the work conditions and needs

After sales service: Super long warranty, free replacement of accessories within the warranty period, free after-sales service for life, 24-hour after-sales service all day, and solve after-sales problems anytime and anywhere

Strict Quality control – For electronic components we adopt the best ones (Schneider brand) , and Stainless steel is used for anti-corrosion vacuum oven. The equipment has been tested throughout the production and before leaving the factory to ensure the operation quality in aspects of power, pressure, air tightness etc., It has passed the all-round quality inspection of SGS, BV and other international testing institutions.

High praise from customers: The customers are all over the world including United States, Canada, South Korea, Japan, Indonesia, Thailand, Vietnam, Malaysia, Australia, New Zealand, European countries and Africa. The industry involves furniture factory, floor factory, cabinet factory, wooden door factory, wooden handicraft factory, etc., Shuowei has been highly praised by customers

Have more questions please contact us

Business Team

Our business team can help you with the price and shipping costs calculations. Come On! Be a member of high frequency vacuum wood dryer kiln users, make your wood drying process easier and faster.

Technical Support

Our technical teams are rich experiences in wood drying, if your any question about wood drying, especially for difficult drying hardwood block,slab,and special wood species drying questions. welcome contact us.

We'd like to work with you

Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right HF wooddryer you want.
