SWKD-12.0HFV High Frequency Wood Dryer

SWKD-12.0 High Frequency Vacuum Wood Dryer, abbreviated as SW-12.0 HFV wood kilns, is a professional mechanical equipment for drying wood. It has the characteristics of short drying time, high efficiency and higher quality wood drying.

SWKD-12.0HFV High Frequency Vacuum Wood Dryer

SWKD-12.0 High Frequency Vacuum Wood Dryer, abbreviated as SWKD-12.0HFV wood kiln, is a professional mechanical equipment for drying wood. It has the characteristics of short drying time, high efficiency and has the advantage of protecting wood.
SWKD-12.0HFV Wood Kiln is purely powered by electricity and without traditional boiler, it is environment friendly and easy to handle with.
Compared with conventional kiln dryer, high frequency vacuum wood dryer machine capacity is small but flexible, less factory space is needed; efficiency is much higher (more than 10 times faster than kiln dryer). After seasoning, timber is kept straight and in high quality without cracking. Out-turn percentage of timber increased. HF vacuum wood dryer machine is the best choice for small and medium furniture manufacturers.

Specification of SWKD-12.0HFV High Frequency Vacuum Wood Dryer Kiln

SWKD-12.0HFV is a large capacity high frequency vacuum wood dryer kiln, it is suitable for flooring, table top slabs, timber and other solid wood products manufacturers.

Model SWKD-12.0HFV Wood Kiln
Capacity 12.48 cubic meters per full load
Out Dimension 9600x2000x2090mm
Timber Cart Size 8000x1300x1200mm
Max Length of Wood 8000mm
Pressure Device Hydraulic pressure system
Pressure device maximum pressure 0~6000 KG
High Frequency 6.78MHz
Vacuum pressure -0.093Mpa
Weight(kg) 13000

Main Features of SWKD-12.0HFV high frequency vacuum wood dryer

      1.Stable drying without defects

The wood is drying under vacuum conditions, it offers low boiling point of water at 35℃. Low temperature drying solves the problems of wood cracking, deformation and discoloration, especially for precious timber sensitive to temperature.

  1. Fast drying

High Frequency medium heating make the wood heated very fast, Temperature Gradient of internal high and external low make water discharged out very quickly. The 8cm thick Africa rosewood from 40-50% moisture content only take 7 days to reach 8-10% moisture content.

  1. High quality drying result

High frequency vacuum wood dryer machine equipped with hydraulic pressure system on the top, the hydraulic pressure system supply more than 6 tons pressure on the wood stacking to prevent wood deformation and bending. And we use stainless steel 304 to make the pressure plate.

  1. Easy operation

PLC control system and Pneumatic system make it is easy to operate. Automatic drying make it no need on duty during the drying process.

  1. High quality high frequency vacuum wood dryer machine

Our high frequency vacuum wood dryer machine is made of stainless steel to avoid corrosion and rust.

Drying result

Shuowei HF Vacuum wood drying kiln has received many good feedback from our customer, below there are MC tests results of some typical wood species.

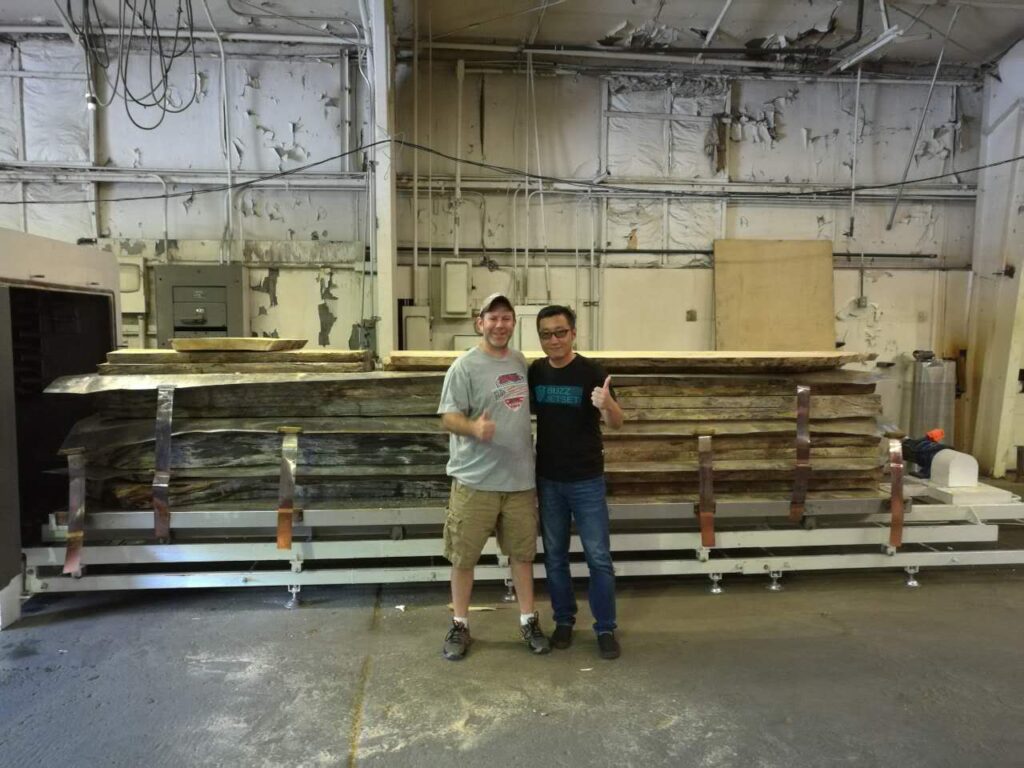

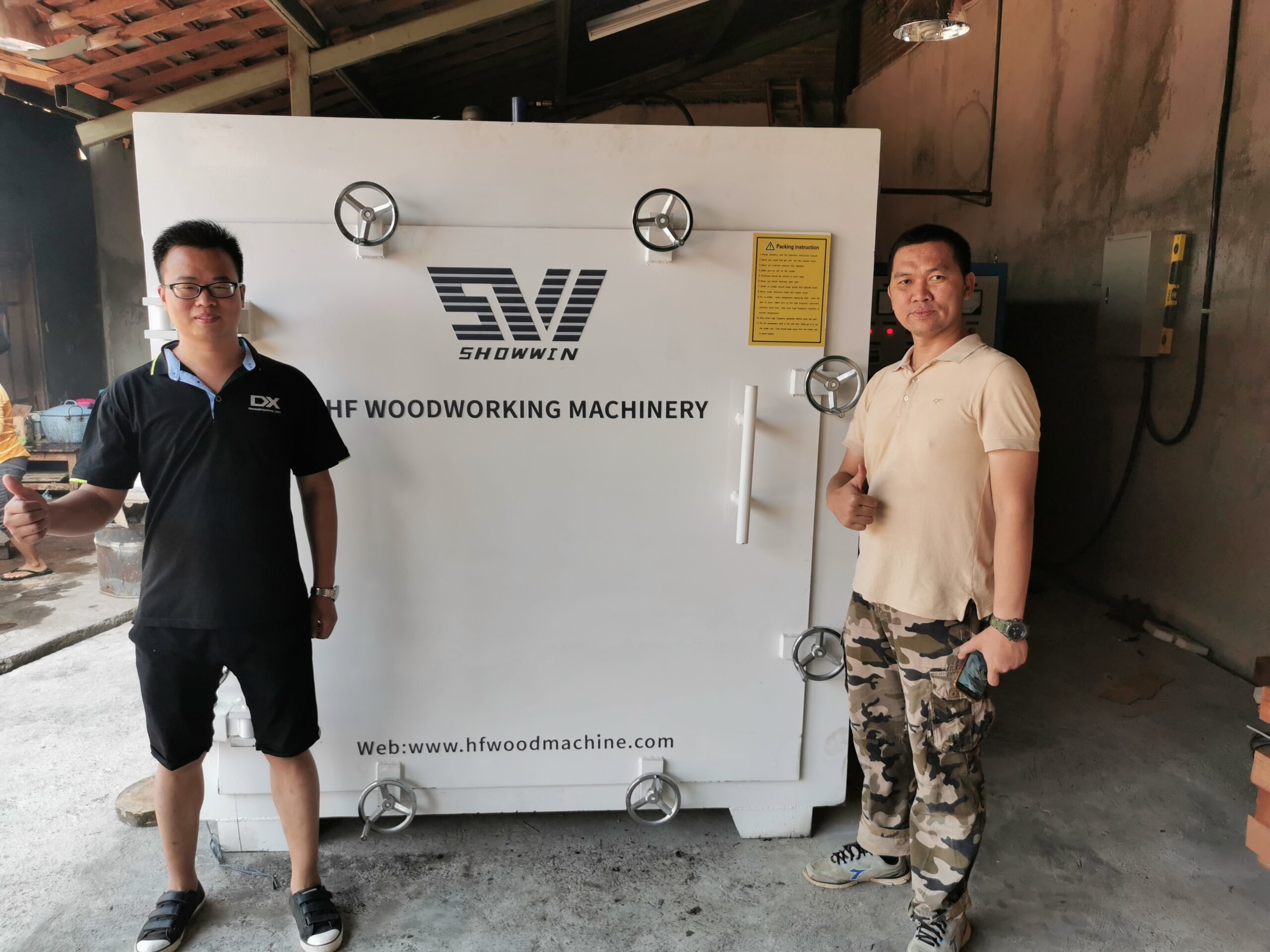

Our Customers

Many customers from the world are benefitting from the high frequency drying technology, if you want make your drying process easier and faster, welcome contact us

Vacuum kiln in Africa

Vacuum kiln in Europe

Vacuum kiln in Vietnam

Why choose us Shuowei?

We do our best to provide you with better service and support for the end users of this HFV machine drying kilns.

Rich experience: Focused on the wood drying industry for more than 30 years, Shuiowei has mastered the drying methods of various wood species, and has most collected comprehensive drying data.

Strong R&D Capacity: There is a professional engineering team in Shuowei, it is led by two drying experts with more than 30 years experience and 12 young engineers who have been in this field for 6-10 years, it could provide customers with professional technical support and wood drying project solutions.

Customized services: According to the customers’ requirements,we can customize the exclusive equipment which is suitable for the work conditions and needs

After sales service: Super long warranty, free replacement of accessories within the warranty period, free after-sales service for life, 24-hour after-sales service all day, and solve after-sales problems anytime and anywhere

Strict Quality control – For electronic components we adopt the best ones (Schneider brand) , and Stainless steel is used for anti-corrosion vacuum oven. The equipment has been tested throughout the production and before leaving the factory to ensure the operation quality in aspects of power, pressure, air tightness etc., It has passed the all-round quality inspection of SGS, BV and other international testing institutions.

High praise from customers: The customers are all over the world including United States, Canada, South Korea, Japan, Indonesia, Thailand, Vietnam, Malaysia, Australia, New Zealand, European countries and Africa. The industry involves furniture factory, floor factory, cabinet factory, wooden door factory, wooden handicraft factory, etc., Shuowei has been highly praised by customers

Have more questions please contact us

Business Team

Our business team can help you with the price and shipping costs calculations. Come On! Be a member of high frequency vacuum wood dryer kiln users, make your wood drying process easier and faster.

Technical Support

Our technical teams are rich experiences in wood drying, if your any question about wood drying, especially for difficult drying hardwood block,slab,and special wood species drying questions. welcome contact us.
